2uew 155 / 180 Ultra Fine Enameled Copper Wire Motor Winding

Name: 2uew 155 180 Ultra Fine Enameled Copper Wire Motor Winding
Brand: Rvyuan
Price: 1 USD

Brand Name : Rvyuan

Model Number : UEW

Certification : ISO9001/ISO14001/UL/SGS

Place of Origin : China

MOQ : 10kg

Price : Negotiation

Payment Terms : Negotiation

Supply Ability : Satisfy your demand

Delivery Time : 2-15 workding days

Packaging Details : Spool with carton

Name : 2UEW 155 / 180 motor winding wire ultra fine enameled copper wire

Diameter : 0.08mm

Standard : GB/T5013.3/IEC60245-3:1994

Conductor : Copper

Insulation : Polyurethane

Rated Temperature : 155/180

Key word : 2UEW 155 / 180 motor winding wire ultra fine enameled copper wire

Contact Now

2UEW 155 / 180 motor winding wire ultra fine enameled copper wire

We are able to cusomize the enameled copper wire as your requirements.

Enameled copper wire is mainly used for winding wires in general motors, electrical appliances, instruments, transformers and other workplaces, such as polyurethane enameled copper wire, modified polyester enameled wire.

Name	2UEW 155 / 180 motor winding wire ultra fine enameled copper wire
Key word	Enameled copper wire
Insulation	Polyurethane
Thermal rating	155degree
Diameter of the enameled copper wire	0.08mm
Key word	2UEW 155 / 180 motor winding wire ultra fine enameled copper wire

Characteristics	Technical requests		Test Results
			Sample 1	Sample 2
Surface	Good		OK	OK
Bare Wire Diameter	0.040±	0.001	0.040	0.040
		0.001
Insulation Film Thickness	Min. 0.002 mm		0.003	0.003
Bonding Film Thickness	Min. 0.002mm		0.003	0.003
Overall Diameter	≤ 0.054 mm		0.0534	0.0534
Continuity of Covering	Max. 3 pcs		Max. 0	Max. 0
Elongation	≥ 14 %		21	22
Breakdown Voltage	Min. 350 V		Min. 1502 V	Min. 1502 V
Flexibility	/		/	/
Adherence	No crack		Good	Good
Cut through	Continur 2 times pass		230 ℃/Good	230 ℃/Good
Solder Test	Max. 2		Max. 1.5	Max. 1.5
Bonding Strength	Min. 5		13	13
Electrical Resistance(20℃)	13.83-14.43 Ω/m		14.23	14.24

Ruiyuan Company was awarded the "Quality A Supplier" by a German Brand

2uew 155 / 180 Ultra Fine Enameled Copper Wire Motor Winding

Product Tags:

2uew ultra fine enameled copper wire

winding ultra fine enameled copper wire

ultra fine uew wire

Wholesale 2uew 155 / 180 Ultra Fine Enameled Copper Wire Motor Winding from china suppliers

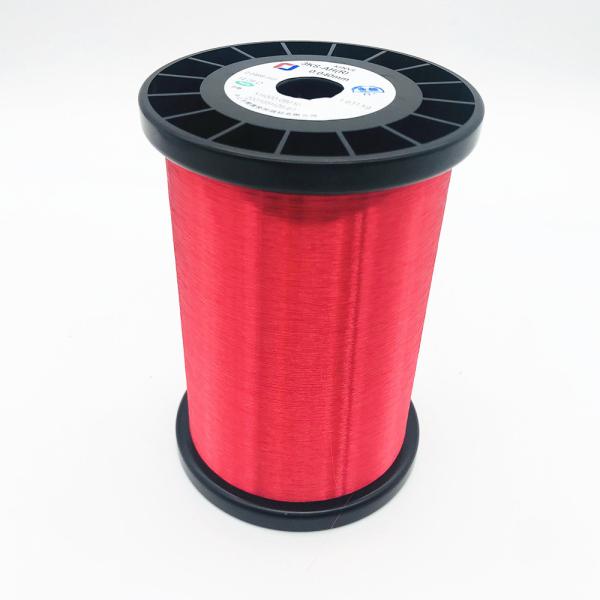

2uew 155 / 180 Ultra Fine Enameled Copper Wire Motor Winding Images
