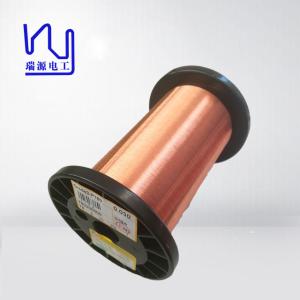

Ul Certified 0.080mm Enamel Insulated Wire Ultra Thin Winding

Name: Ul Certified 0080mm Enamel Insulated Wire Ultra Thin Winding
Brand: Ruiyuan
Price: 1 USD

Brand Name : Ruiyuan

Model Number : 0.08mm

Certification : UL/ISO9001/ISO14001/RoHS/Reach

Place of Origin : China

MOQ : 20 kg

Price : Negotiation

Payment Terms : Negotiation

Supply Ability : 10Ton/week

Delivery Time : 2-15 days

Packaging Details : Carton

Product Name : UL Certified 0.080mm Enameled Copper Wire Ultra Thin Insulated Winding Copper Wire

Thermal rating : 155/180

Insulation Material : Polyurethane

Diameter : 0.08mm

Conductor material : Copper

Key word : UL Certified 0.080mm Enameled Copper Wire Ultra Thin Insulated Winding Copper Wire

Contact Now

UL Certified 0.080mm Enameled Copper Wire Ultra Thin Insulated Winding Copper Wire

The production process is subject to fine-meshed control of all product and process parameters. The effectiveness of the quality assurance measures has been confirmed by external auditors repeatedly in numerous certificates.

Features:

1. Temperature Rate: 155/180/220℃

2. Two types of self-bondnig maetrials and ca be processed with either alcohol,heat or electric methods. The alcohol must be revoved from the coil to ensure taht long term insulation degradatoin does not occur.The wire has unifor lubrication and good winding property

3. We also provider solderable wires to save process time for customers

4. Size range:0.015-0.6mm

Item	Characteristics	Test Standard	Conclusion
1	Bare Wire Diameter	0.08±0.002MM	0.080
2	Overall Diameter	≤0.094MM	0.092
3	Conductor Resistance	MAX: 3.608Ω/M	3.463Ω/M
4	Breakdown voltage	≥425V	2032V
5	Elongation	MIN:16%	22.3%
6	Solderability	390± 5℃ 2 Secs No Slags	OK
Conclusion		Qualified

Name	UL Certified 0.080mm Enameled Copper Wire Ultra Thin Insulated Winding Copper Wire
Key word	Enameled copper wire
Insulationh	Enamel
Thermal rating	155/180
Diameter of the enameled copper wire	0.08mm
Type	UL Certified 0.080mm Enameled Copper Wire Ultra Thin Insulated Winding Copper Wire
